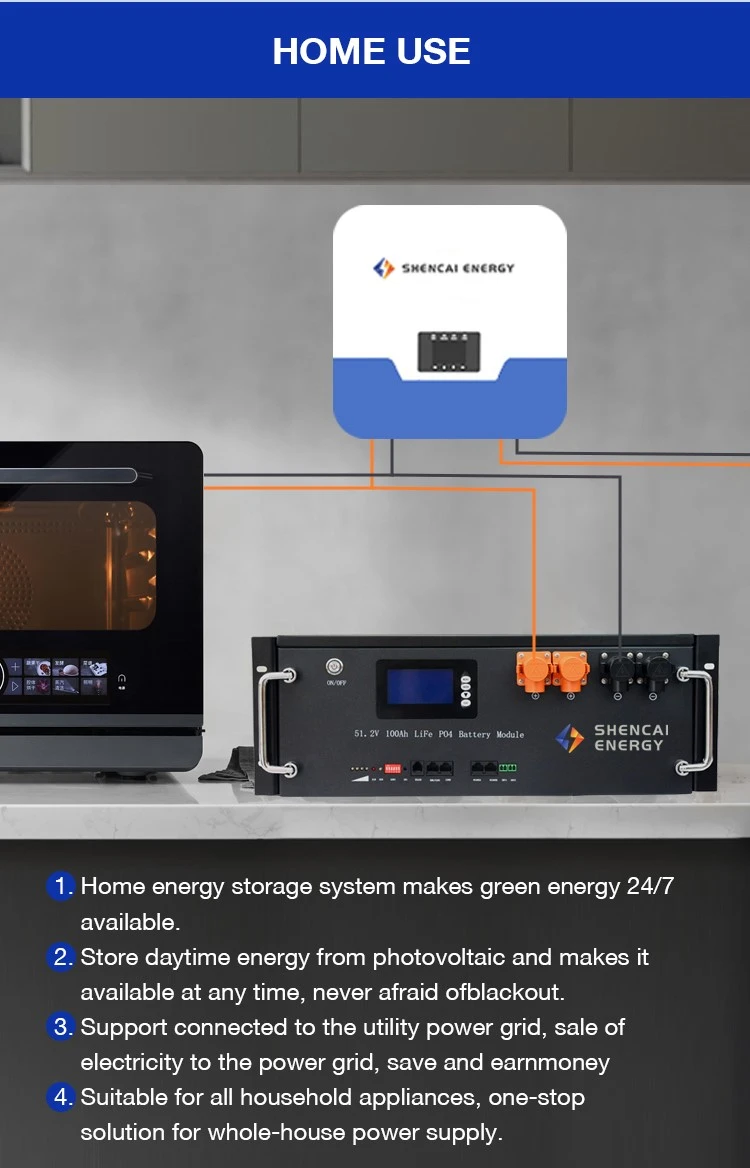

This product is a home energy storage power supply in a rack-mounted design. It can be stacked according to individual needs, with a maximum stacking height of 5 layers and a total capacity of 25 kWh.
Send Inquiry
Description
Products Description

9



5



7

Products paramenters
SC-R100 Wall Mounted Product Parameters

odel

SC-R100

SC-R200

Series connection

15S

15S

Battery Energy

5.12KWh

10.24KWh

Nominal Capacity

100Ah

200Ah

Nominal voltage

48V

48V

Charge Voltage

58.2V

58.2V

Discharge Cut-off Voltage

42V

42V

Standard Charging Current

20A

20A

Max.Continuous Charging Current

100A

100A

Max Continuous Discharge Current

100A

100A

Cycle Life

≥6000 times@80%DOD,25℃

≥6000 times@80%DOD,25℃

Communication Protocol

RS485/CAN

RS485/CAN

Charge Temperature Range

0~60°C

0~60°C

Discharge Temperature Range

-10°C~65°C

-10°C~65°C

Size(LxWxH)

530×493×175mm

515×493×350mm

Net Weight

45KG

90KG

Package Size (L×W×H)

530×540×260mm

530×540×570mm

Gross Weight

55KG

110KG



6



8

Certifications



20240411170023



Company profile

-1

product-750-1125



FAQ



1.Q:How long is the delivery time of your products?

A:Usually about 15days .



2.Q:What kind of certificates your products have?

A:Shencai ENERGY battery products have acquired UN38.3, CE, FCC, UL and PSE certificates, which is able to satisfy most country's importing requirements.



3.Q:Can you supply OEM &ODM service ?

A:Yes.



4.Q:The battery is very heavy. Will it be damaged while shipping?

A:That's one of the issues we have been concerned. After a long time of improvement and verification, our packing is now very safe and reliable. When you open the package, you will see our sincerity.



5.Q:why should you buy from us not from other suppliers?

A:We specialize in the development and production of energy storage batteries. Our batteries are all grade A level, no matter how many batteries you order, we will test each product before shipping.



6.Q:Is this product safe?

A:Our products all pass the safety test of overcharge, over discharge, over temperature, short circuit, acupuncture and so on,with no fire or explosion under any circumstances.



7.Q:Can I get a sample?

A:Yes, please leave your contact information and our sales manager will contact you soon.



8.Q:what services can we provide?

A:Accepted Delivery Terms: FOB,CIF,EXW,DDP,DDU; Accepted Payment Currency: USD, EUR, AUD, HKD, CNY; Accepted Payment Type:T/T,Credit Card, PayPal, Western Union, Cash;



Products paramenters



SC-R100 Wall Mounted Product Parameters

Model

SC-R100

SC-R200

Series connection

15S

15S

Battery Energy

5.12KWh

10.24KWh

Nominal Capacity

100Ah

200Ah

Nominal voltage

48V

48V

Charge Voltage

58.2V

58.2V

Discharge Cut-off Voltage

42V

42V

Standard Charging Current

20A

20A

Max.Continuous Charging Current

100A

100A

Max Continuous Discharge Current

100A

100A

Cycle Life

≥6000 times@80%DOD,25℃

≥6000 times@80%DOD,25℃

Communication Protocol

RS485/CAN

RS485/CAN

Charge Temperature Range

0~60°C

0~60°C

Discharge Temperature Range

-10°C~65°C

-10°C~65°C

Size(LxWxH)

530×493×175mm

515×493×350mm

Net Weight

45KG

90KG

Package Size (L×W×H)

530×540×260mm

530×540×570mm

Gross Weight

55KG

110KG
